Air injection plugs and pistons

Plug, splotted

consisting of compressed air connector and sealing collar
Other rope dia. on request

Inner pipe Ø
Weight
Rope Ø
Order No.
 26 –  29 mm
0,44 kg
4 mm
009.532.00
 33 –  36 mm
0,56 kg
4 mm
009.532.10
 40 –  43 mm
0,65 kg
4 mm
009.532.20
 50 -  54 mm
0,94 kg
4 mm
009.532.50
 97 – 103 mm
3,31 kg
4 mm
009.532.30
107 – 118 mm
3,87 kg
4 mm
009.532.40
145 -160 mm
2,50 kg
4 mm
009.532.60
75 - 79 mm
1,38 kg
10 mm
009.547.00
Optical fibre plunger, flexible



Inner duct dia.
Weight
Order No.
28 mm
0,23 kg
009.955.50
32 mm
0,25 kg
009.956.00
35 mm
0,28 kg
009.956.50
40 mm
0,30 kg
009.957.00
50 mm
0,35 kg
009.958.00
Calibation arbor
Inner duct dia.
Weight
Order No.
28 mm
0,2 kg
009.677.00
35 mm
0,25 kg
009.677.10
40 mm
0,3 kg
009.677.20
Sleeved piston with plasic collar

Other sizes upon request

Inner pipe Ø
Weight
Order No.
28 mm
0,05 kg
009.760.50
35 mm
0,06 kg
009.761.00
40 mm
0,07 kg
009.762.00
45 – 47 mm
0,15 kg
009.763.00
73 – 76 mm
0,28 kg
009.764.00
89 – 91 mm
0,3 kg
009.765.00
98 – 101 mm
0,5 kg
009.766.00
102 – 104 mm
0,6 kg
009.767.00
109 – 112 mm
0,65 kg
009.768.00

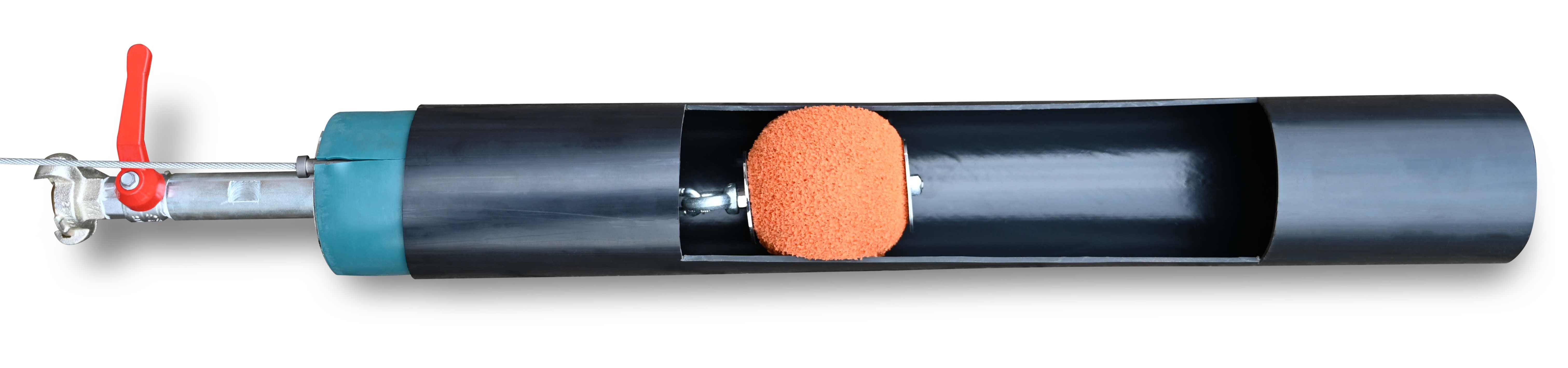

Sponge ball piston

other sizes upon request

Inner pipe Ø
Weight
Order No.
45 – 55 mm
0,20 kg
009.755.30
50 – 60 mm
0,22 kg
009.755.35
60 – 70 mm
0,26 kg
009.755.40
70 – 90 mm
0,30 kg
009.755.45
80 – 100 mm
0,34 kg
009.755.50
100 – 120 mm
0,55 kg
009.755.55
120 – 140 mm
0,70 kg
009.755.60
Parachute for blowing-in
Inner pipe Ø
Weight
Order No.
50 – 100 mm
0,087 kg
009.754.60
100 – 150 mm
0,113 kg
009.754.70
150 - 200 mm
0.199 kg
009.754.80
Stringing gun EZ - 100

Easy and trouble-free stringing or sucking with the EZ-100
For all commercial pipes of diameter 50 - 150 mm.
Insering up to 900 m pipe length in 3 minutes.

Order-No. 009.930.00

Further scope of supply
2 special pull line rolls ø 1 mm
1 Suction unit
5 shuttle sets 50, 60, 80, 100,120 mm
Each set completes 2 shuttles.
1 box with assembly material for shuttles

  • big time-savings during cable pulling
  • compact dimensions allows excellent accessibility even with very tight clearance
  • simple operation of the machine
  • string roll of approx. 900m
  • double functionality blowing and sucking mode
  • calibration is no longer necessary
  • fits in the trunk of every car
Stringing gun EZ - 100 PLUS

Order-No. 009.933.00

Same scope of supply as for EZ 100 009.930.00 but
additional accessories included:
1 Special equipment for small tube diameters
1 Foam adapter (ø 170 mm)
1 parachute 30-60mm
1 parachute 60-100 mm
1 parachute 100-150 mm
1 cone
