Cable and pipe rollers

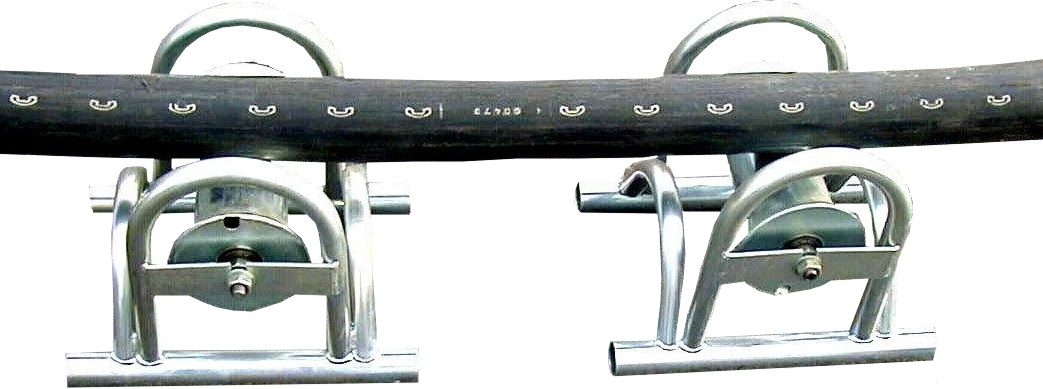

Cable roller (standard)
galvanized, running in dust and water proofed bearings
Load
max. cable Ø
Weight
Order No.
250 kg
155 mm
4.2 kg
009.402.00

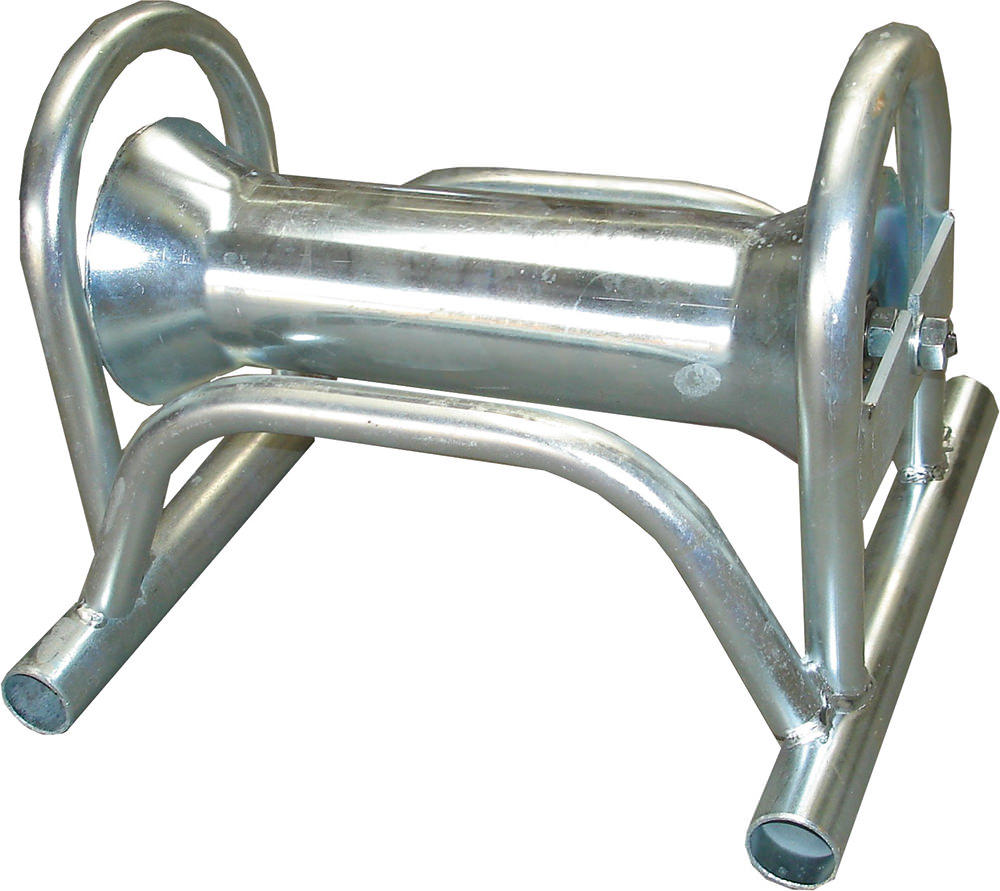

Cable roller (wide)
galvanized, running in dust and water proofed bearings
Load
max. cable Ø
Weight
Order No.
250 kg
200 mm
5.0 kg
009.402.55
250 kg
280 mm
6.8 kg
009.402.60
Cable roller with ground plate (standard)
galvanized
Load
max. cable Ø
Weight
Order No.
250 kg
155 mm
4.5 kg
009.403.00
Cable roller, made of PVC
Load
max. cable Ø
Weight
Order No.
250 kg
155 mm
3.6 kg
009.402.10
Spare roller for (standard) cable and angle roller with bearings and axle
galvanized
Weight
Order No.
1.7 kg
009.401.01
Tube roller with base plate
galvanized, for welding of single lengths and inserting inliners of 300 mm diameter.
Max. Load
Weight
Order No.
300 kg
4 kg
009.100.00
Corner roller with plug-in hinges (standard)
galvanized, running in dust and water proofed bearings
Load
max. cable Ø
Weight
Order No.
250 kg
110 mm
13.5 kg
009.404.00
Accessory:
Earth nail, galvanized (without illustration)
Weight
Order No.
1,4 kg
009.405.00
Corner roller with plug-in hinges (wide)
galvanized, running in dust and water proofed bearings
Load
max. cable Ø
Weight
Order No.
250 kg
160 mm
13.6 kg
009.404.20
Heavy-duty roller
galvanized, running in dust and water proofed bearings
Load
max. cable Ø
Weight
Order No.
350 kg
200 mm
17 kg
009.408.20

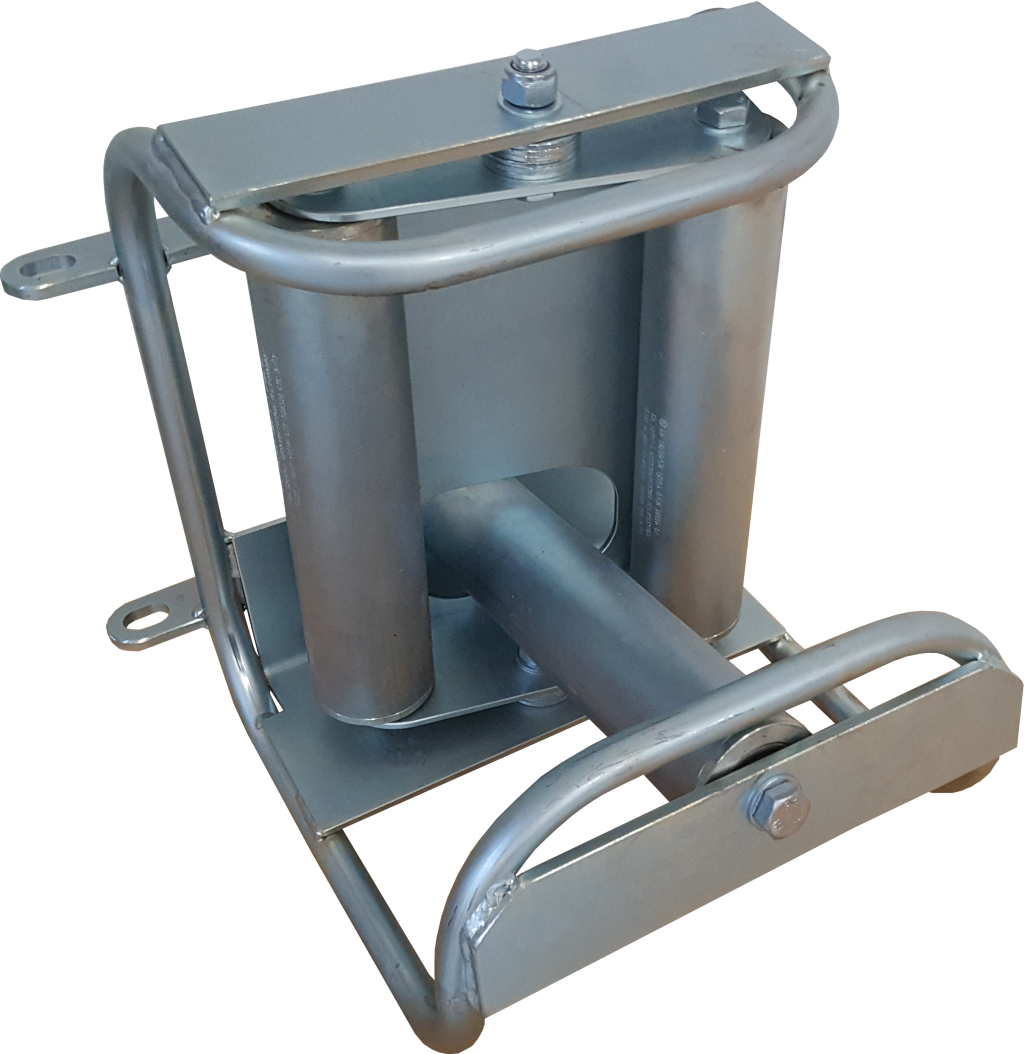

Heavy-duty corner roller
galvanized, running in dust and water proofed bearings
Load
max. cable Ø
Weight
Order No.
800 kg
170 mm
40 kg
009.408.50
Accessory:
Earth nail, galvanized (without illustration)
Weight
Order no.
1,4 kg
009.405.00
Cable guide and run-off frame
galvanized, This device is to be placed just behind the cable drum.
| Load | Weight | Order No. |
|---|---|---|
| 500 kg | 20 kg | 009.409.10 |
Load
Weight
Order No.
200 kg
15 kg
009.409.00
Reinforced version: for laying of heavy cable and tube dia. > 300 mm
Load
Weight
Order No.
500 kg
20 kg
009.409.10
Rohrverlegebock
_1.jpg)
verzinkt
Max. Rohr-
durchmesser
Max.Traglast
Gewicht
Bestell-Nr.
500 mm
500 kg
11,5 kg
009.409.20
750 mm
1000 kg
29 kg
009.409.30
Cable rack roller, open- type
galvanized
Weight
Order No.
5.5 kg
009.590.00

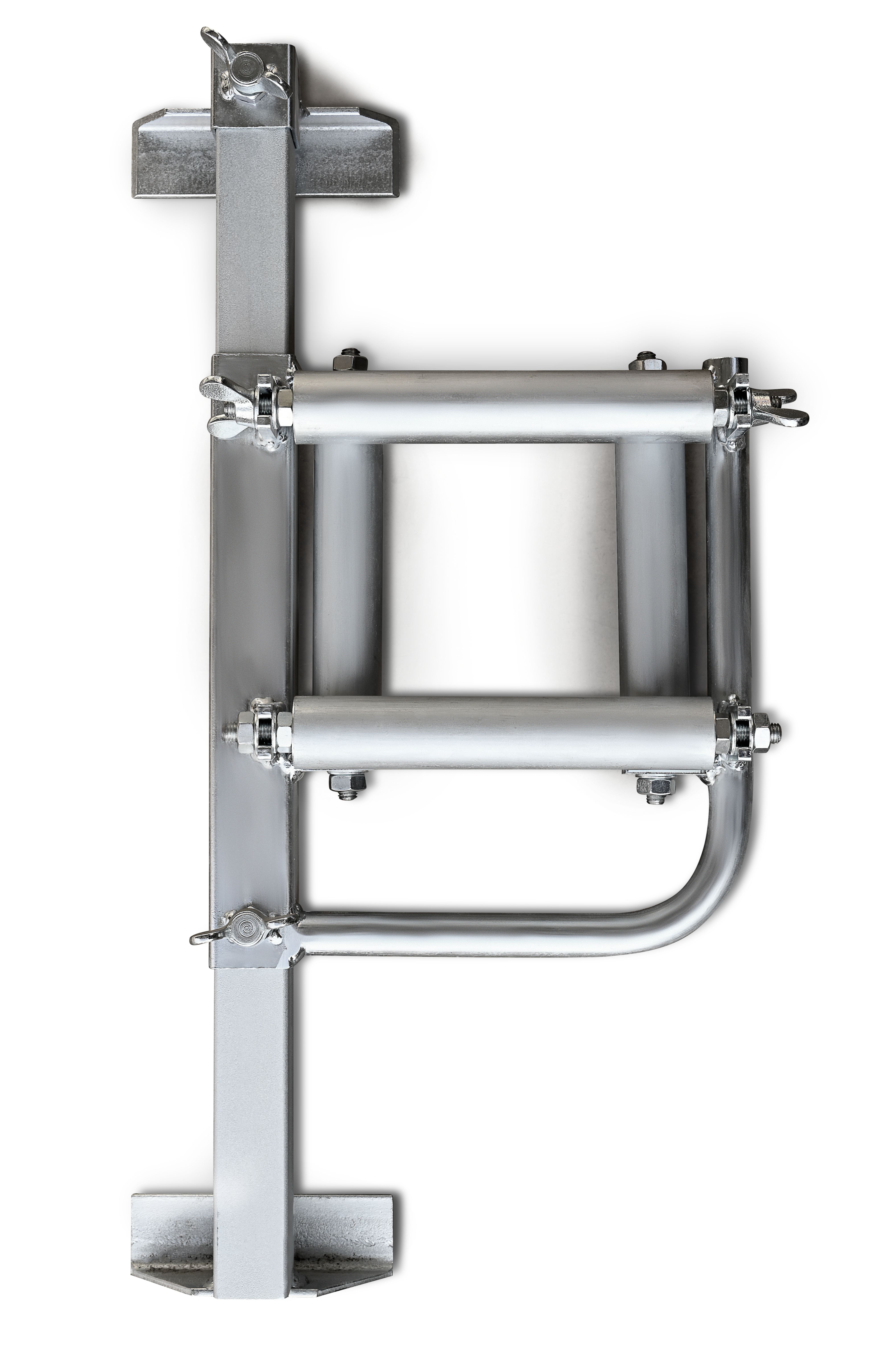

Cable rack roller, closed-type
galvanized
Weight
Order Nr.
6 kg
009.591.00
