Glass fibre rods

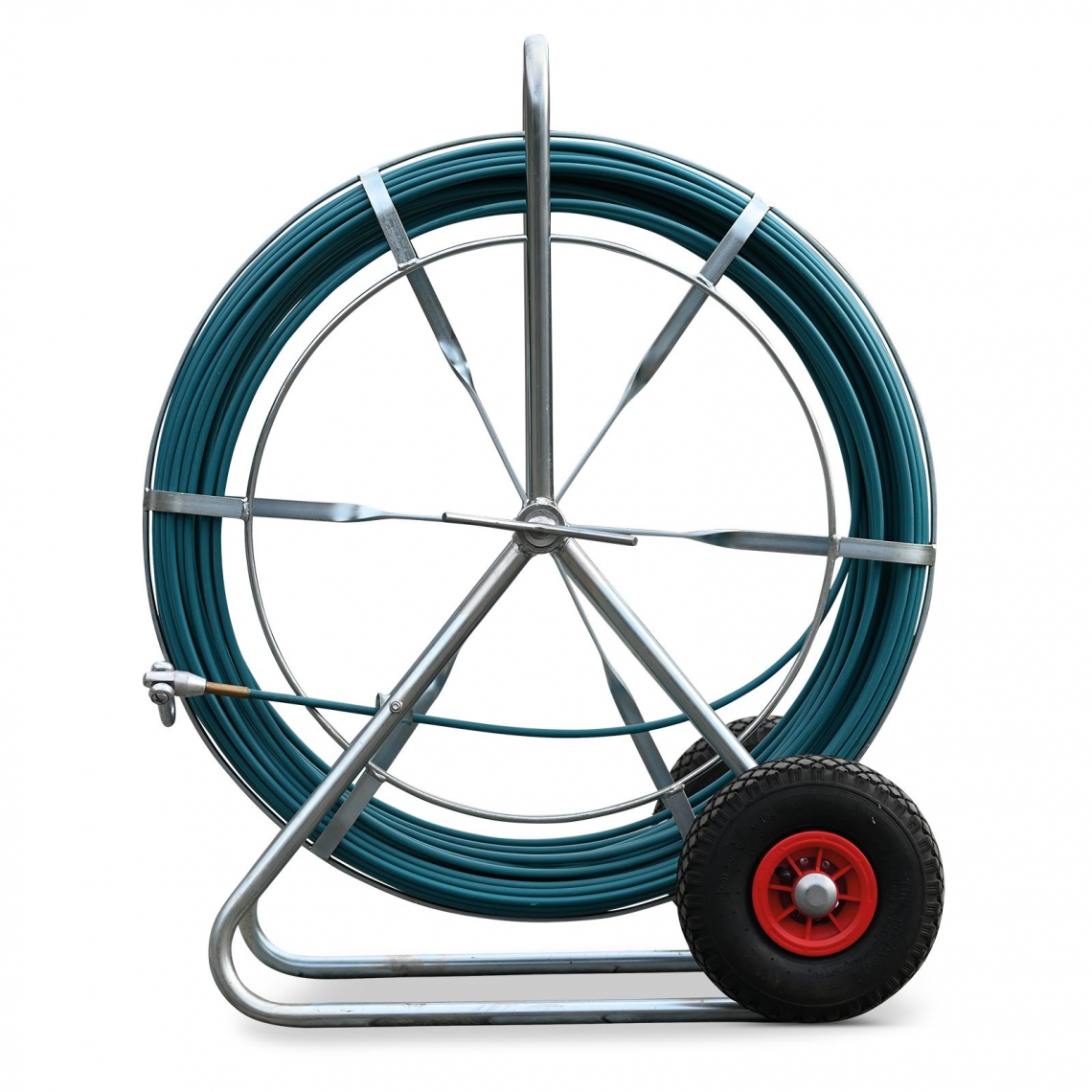

Glass fibre rod spooled on a galvanized vertical wheeled cage
complete of starting / ending junctions spinner and shackle
* = Vthe use of Bagela cable pusher BKS 400 recommended
Length
Rod Ø
Cage Ø
Weight
Order No.
60 m
9 mm
800 mm
18 kg
009.446.00
80 m
9 mm
800 mm
20 kg
009.447.00
100 m
9 mm
800 mm
28 kg
009.448.00
120 m
9 mm
800 mm
30 kg
009.449.00
120 m
11 mm
1000 mm
37 kg
009.450.00
150 m
11 mm
1000 mm
43 kg
009.451.00
200 m
11 mm
1000 mm
50 kg
009.452.00
250 m
11 mm
1000 mm
58 kg
009.453.00
300 m
11 mm
1000 mm
65 kg
009.454.00
300 m
15 mm *
1500 mm
119 kg
009.457.50
400 m
15 mm *
1500 mm
147 kg
009.457.60
Glass fibre rod spooled on a galvanized vertical cage
complete of starting / ending junctions spinner and for the 9 mm rod with shackle
Length Dia.
Rod Ø
Cage Ø
Weight
Order No.
30 m
6 mm
600 mm
6,8 kg
009.444.50
40 m
6 mm
600 mm
7,2 kg
009.444.55
50 m
6 mm
600 mm
7,8 kg
009.444.60
60 m
6 mm
600 mm
8,3 kg
009.444.65
70 m
6 mm
600 mm
8,9 kg
009.444.70
80 m
6 mm
600 mm
9,4 kg
009.444.75
.
30 m
9 mm
600 mm
10 kg
009.445.00
40 m
9 mm
600 mm
11 kg
009.445.10
50 m
9 mm
600 mm
12 kg
009.445.20
60 m
9 mm
600 mm
13 kg
009.445.30
70 m
9 mm
600 mm
14 kg
009.445.40
80 m
9 mm
600 mm
15 kg
009.445.50

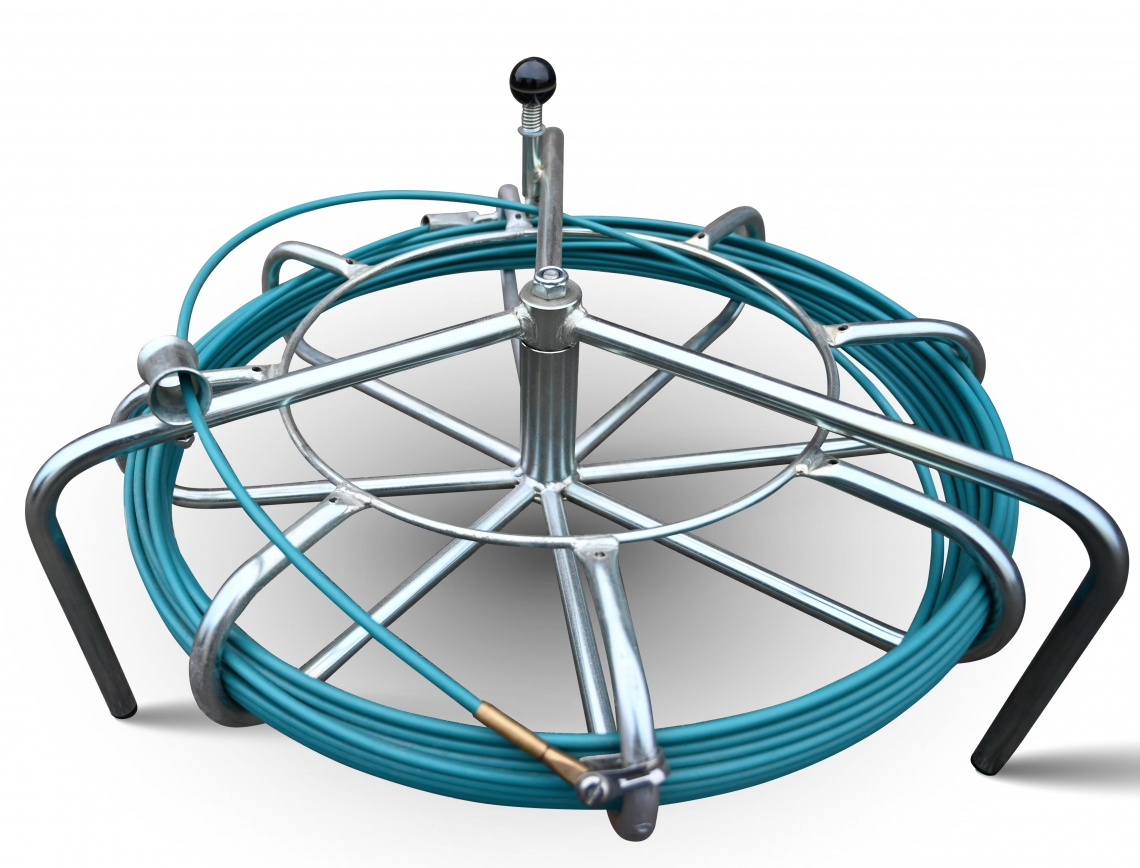

Glass fibre rod spooled on a galvanized horizontal cage
complete of starting / ending junctions spinner
Length
Rod Ø
Cage Ø
Weight
Order No.
30 m
6 mm
550 mm
5,8 kg
009.444.00
40 m
6 mm
550 mm
6,2 kg
009.444.05
50 m
6 mm
550 mm
6,8 kg
009.444.10
60 m
6 mm
550 mm
7,3 kg
009.444.15
70 m
6 mm
550 mm
7,9 kg
009.444.20
80 m
6 mm
550 mm
8,4 kg
009.444.25
Glass fibre rod spooled on a galvanized vertical cage
complete of starting / ending junctions spinner
Length
Rod Ø
Cage Ø
Weight
Order No.
20 m
4,5 mm
330 mm
4,8 kg
009.443.00
30 m
4,5 mm
330 mm
5,0 kg
009.443.10
40 m
4,5 mm
330 mm
5,2 kg
009.443.20
50 m
4,5 mm
330 mm
5,4 kg
009.443.30
60 m
4,5 mm
330 mm
6,0 kg
009.443.40
70 m
4,5 mm
330 mm
6,4 kg
009.443.50
80 m
4,5 mm
330 mm
6,8 kg
009.443.60

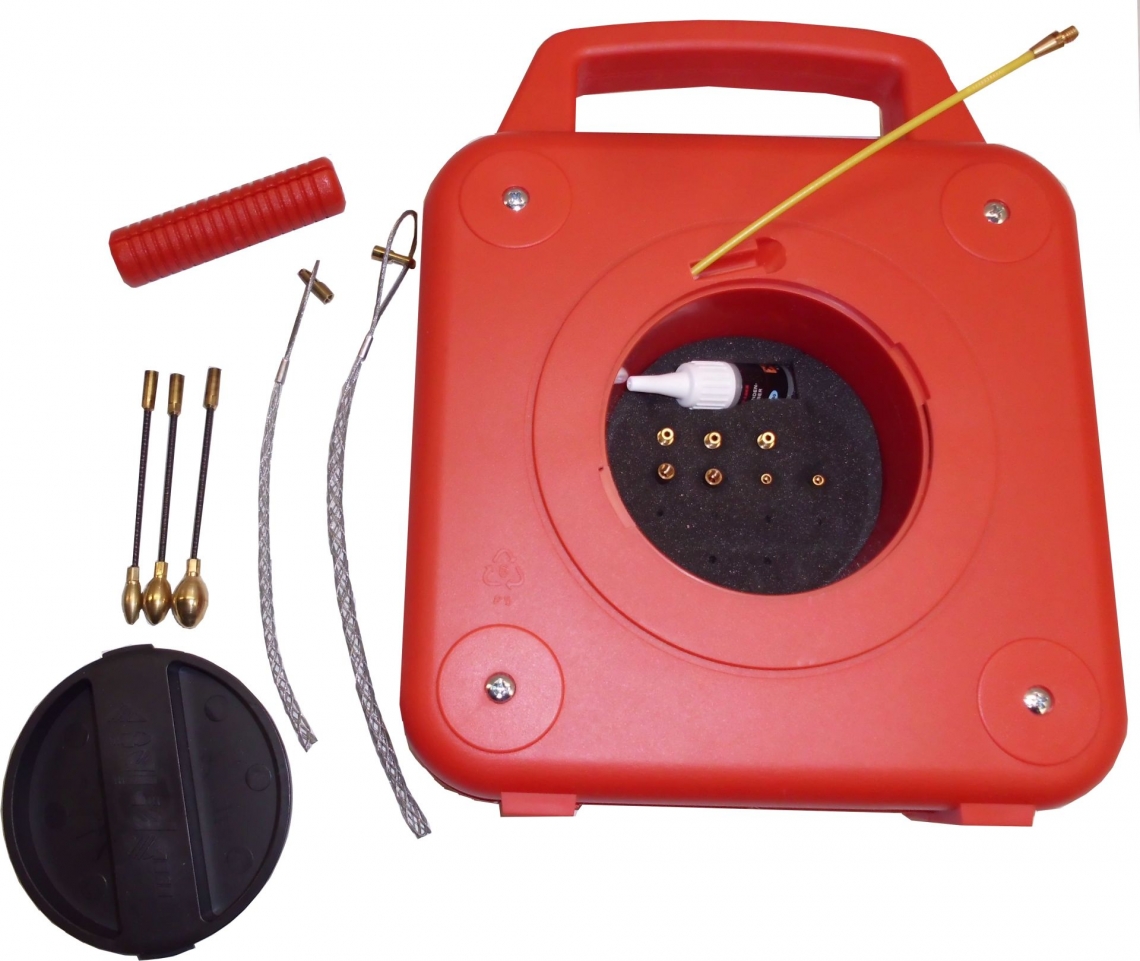

Glass fibre rod „Mini-Flex“
complete of container, flexible grips, spinner, starting junctions, pliers and glue
Length
Rod Ø
Weight
Order No.
20 m
3 mm
1,2 kg
009.456.00
30 m
3 mm
1,3 kg
009.456.10
50 m
3 mm
1,6 kg
009.456.20
Glass fibre rod with a strand of copper
*1 = standing cage, *2 = whelled cage
Length
Rod Ø
Cage Ø
Weight
Order No.
50 m
9 mm
600 mm *1
12 kg
009.468.50
100 m
9 mm
1000 mm *2
28 kg
009.468.60
100 m
11 mm
1000 mm *2
35 kg
009.468.70
150 m
11 mm
1000 mm *2
43 kg
009.468.80
200 m
11 mm
1000 mm *2
50 kg
009.468.90

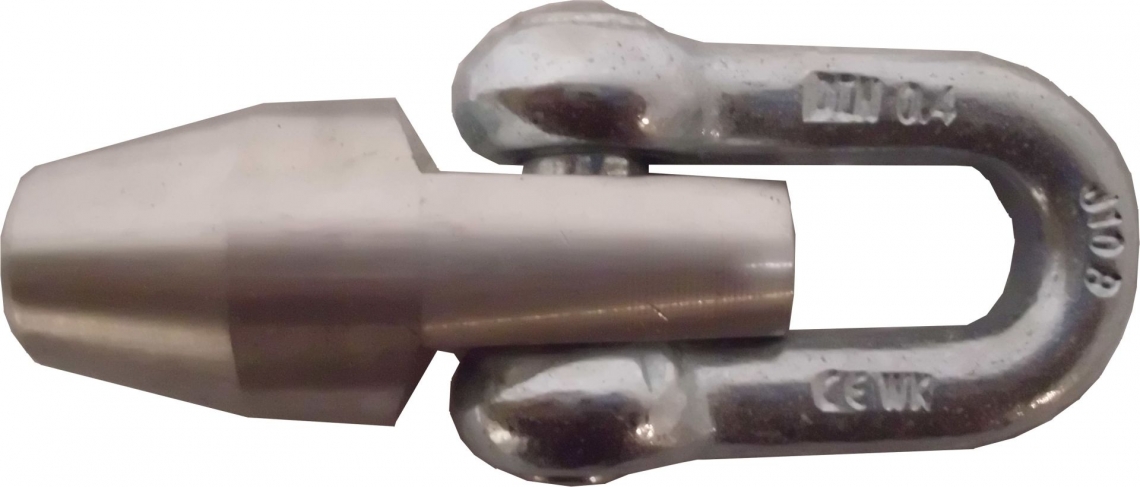

Starting spinner with shackle
Rod Ø
Order No.
4,5 mm
009.470.70
6 mm
009.470.20
9 mm
009.482.00
11 mm
009.482.00
15 mm
009.482.00

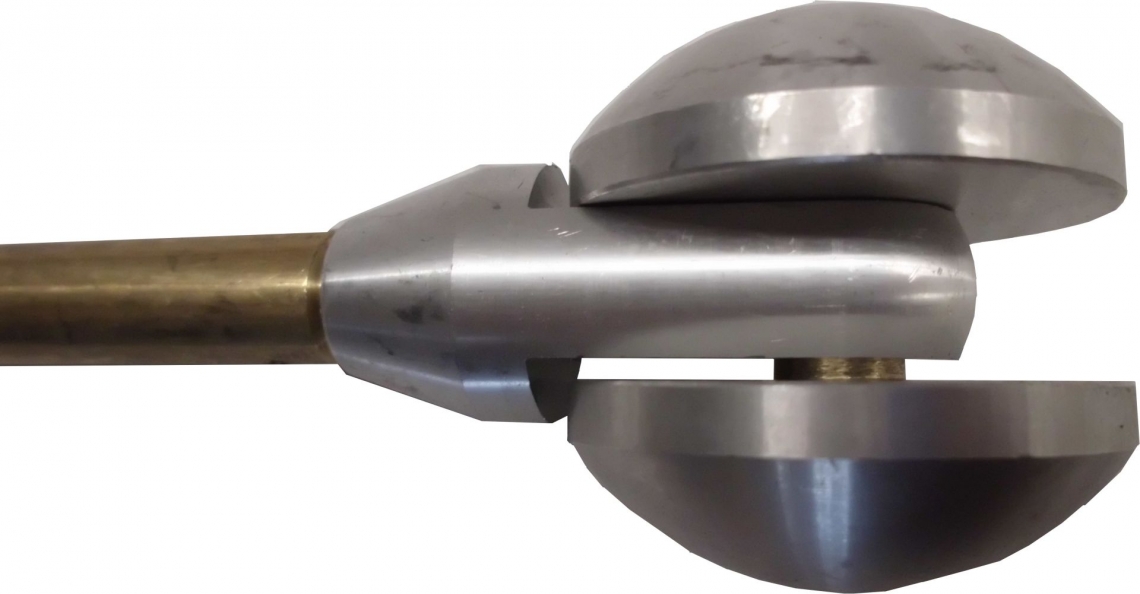

Starting roller
Rod Ø
Order No.
6 mm
009.470.30
9 mm
009.487.00
11 mm
009.487.00
15 mm
009.487.00
Coupler device
Inner pipe Ø
Order No.
46 mm
009.489.20
100 mm
009.489.30
Roller device for cage
Order No. 009.477.00
Repair bushing
Rod Ø
Order No.
4,5 mm
009.470.60
6 mm
009.470.10
9 mm
009.483.00
11 mm
009.480.00
15 mm
009.480.10
Starting bushing
Rod Ø
Order No.
4,6 mm
009.470.50
6 mm
009.470.00
9 mm
009.484.00
11 mm
009.481.00
15 mm
009.481.10
Two-component adhesive
for repair or starting bushing
Order No. 009.486.00
Coupling swivel
Order No. 009.485.00
