Gerneral view Blowing-in machines

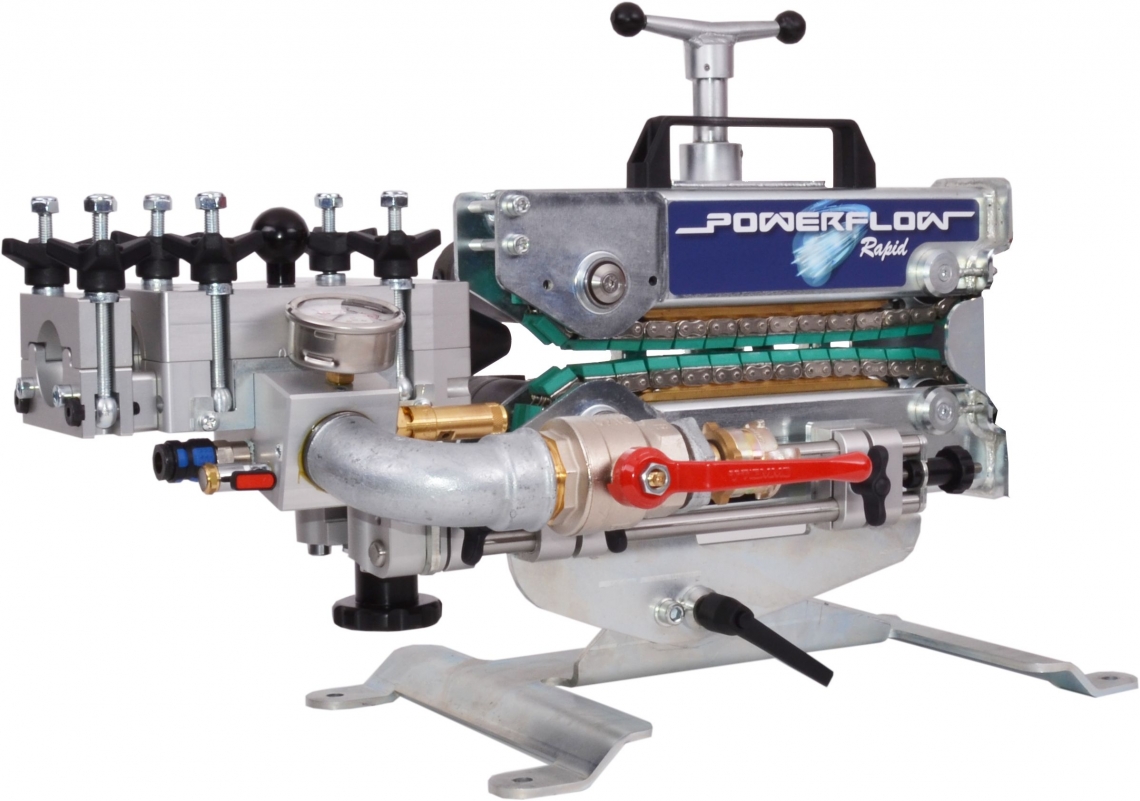

A true power pack to insert LWL cable with a diameter of 8-22mm into pipes with a diameter of 32-50 mm. Flex-Block included.
Designed to blow in multiple micro ducts or single large size cables into ducts with a dia. of 32 up to 50 mm. It is suitable for air- and water blowing. The drive chains are propelled by two low-wear and low-noise hydraulic motors. Flex-Block included.
|reuired air flow:||10 m³/min|
|reuired air pressure:||12 bar|
|Control unit and power pack:||(125 bar / 15 l/min) required!|
Miniflow is used for blowing in fibre optic cables from 4 up to 11 mm into ducts from 7 up to 20 mm.
Microflow is used for blowing in small fibre optic cable 1- 4 mm. in pipes of outer dia. 5, 7 or 10 mm.
|max. speed:||100 m/min|
|required air flow:||1 m³/min|
|required air pressure:||15 bar|
|required electric power supply||230 V|
The Microflow Log is used for blowing in small fibre optic cable 1- 4 mm. in pipes of outer dia. 5, 7 or 10 mm. But it is operated via a newly developed unit, which enables the issue of a protocol in accordance with the regulations of Deutsche Telekom. The log data can be transmitted via W-LAN or via mobile communications from the construction site to the client or the office.
For fibre to home installation, independent of other machines or tools, powered by rechargeable battery, double fibre protection, LED display showing speed, distance, fibre protection. Delivered in practical carrying case with quick guide, one adapter and sealings for pipes 8,5; 12 and 12,7 mm.
Digital Logging System for fibre optic cable blowing
The Power Pack is required for Bagela Powerflow, Multiflow und Miniflow.
Hydraulic hose 10 m for BHA 125/15 Order No. 003.528.02
With the control unit pressure and speed are regulated. The chains of the particular injection system are set in motion by the lever. The Power Pack is required for Bagela Powerflow, Multiflow und Miniflow.
suitable for Miniflow and Microflow, an air cooler is necessary
suitable for Powerflow and Multiflow, an air cooler is integrated,
between 6 -14 bar stepless adjustable
