Microflow

Microflow Touch

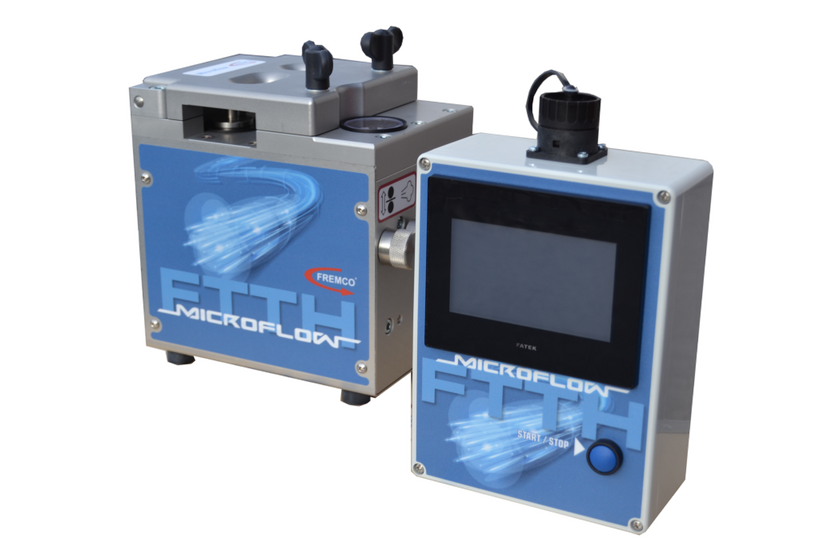

The Microflow is used for blowing in small fibre optic cable 1- 5 mm. With the Microflow cable blowing is fully automated and operated by touch screen. The continuously variable operation speed and the maximum speed are preselectable. A micro sensor supervises the linear course of the fibre optic. A lateral swivel out due to the rising friction or obstacles will cause an immediate stop and the cable gets moved backwards.

Technical Data:
max. speed: 100 m/min
required air flow: 1 m³/min
required air pressure: 15 bar
required electric power supply:: 230 V
rating: 180 W
Order No. 111.351.00



Microflow Log
Bestell-Nr. 111.351.50

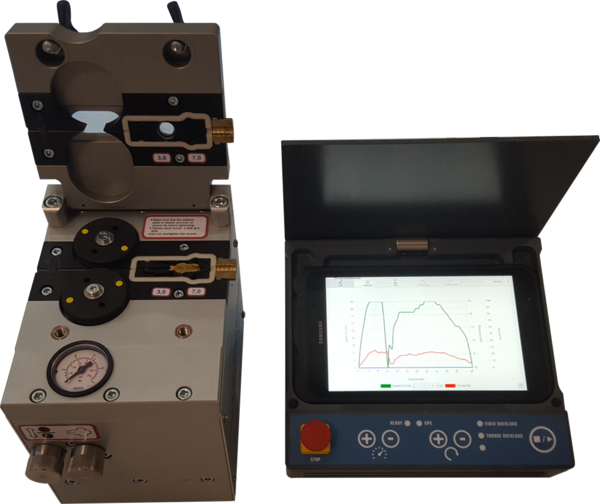

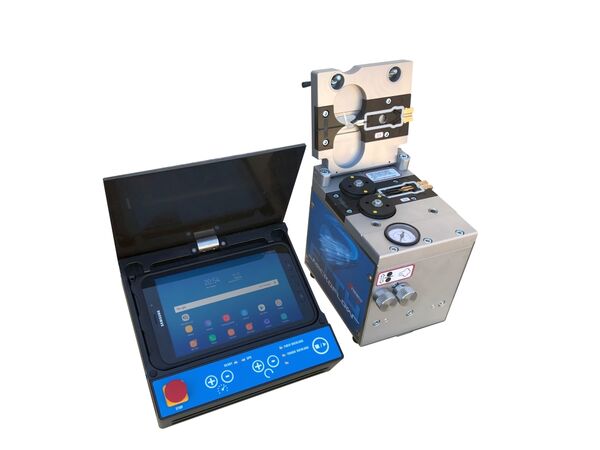

The Microflow Log is for the same application like the Touch. But it is operated via a newly developed unit, which enables the issue of a protocol in accordance with the regulations of Deutsche Telekom. The log data can be transmitted via W-LAN or via mobile communications from the construction site to the client or the office.

Spare and wear parts

Adaption set

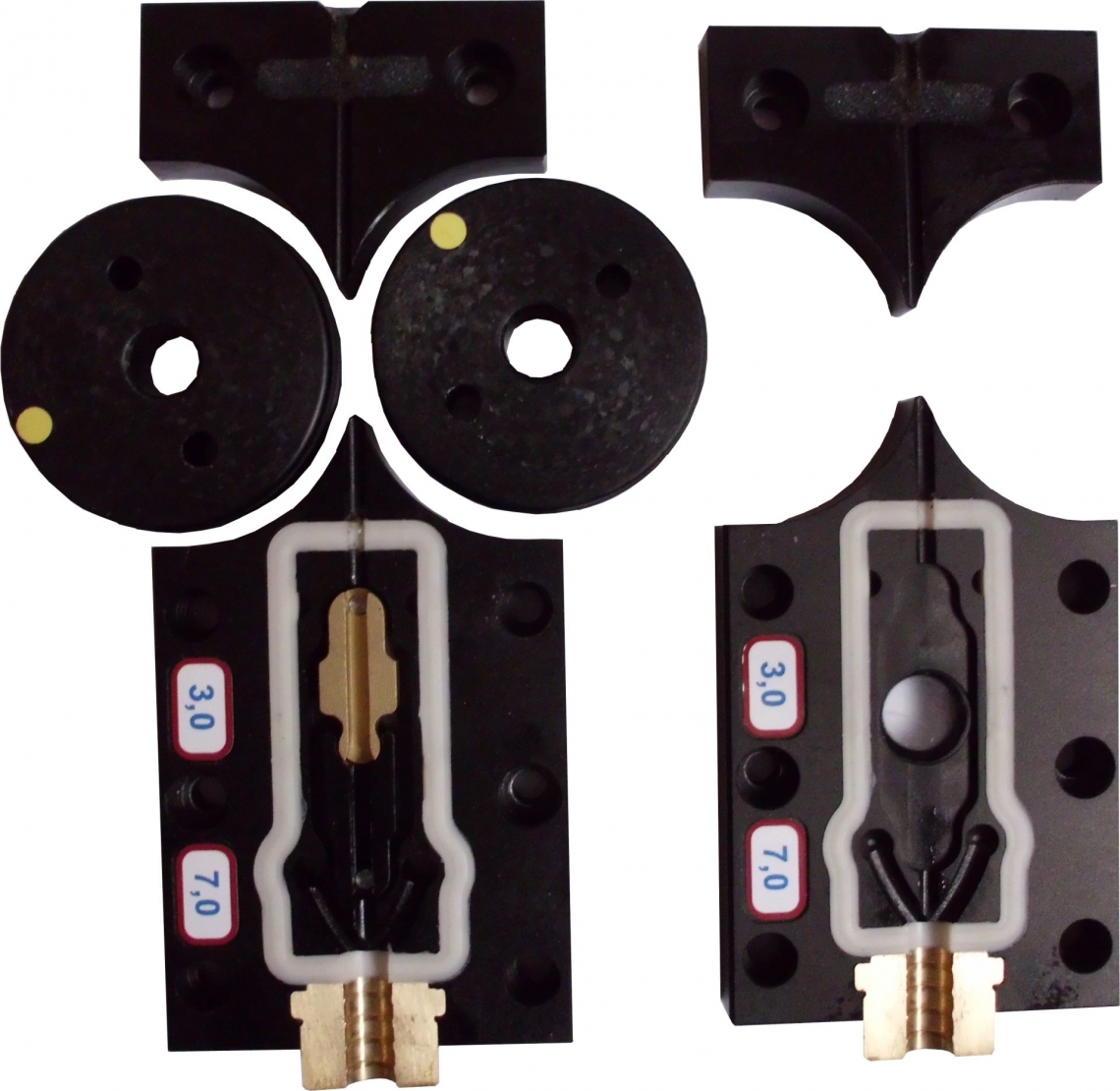

This is a complete set of format parts consisting of nylon fibre guide, wheels, top blowing junction block, bottom blowing junction block, fibre cable sensor arm and o-rings for the wheels. The Adaption set is available in different sizes and must be used according to the actual size of fibre cable and micro duct. Please specify the size of the fibre cable and micro duct.

Adaption set
Cable Ø
Pipe Ø
Order No.
A
1,0 – 1,7 mm
5 mm
111.352.00
B
1,8 – 2,6 mm
7 mm
111.351.02
C
2,7 – 3,8 mm
10 mm
111.354.00
D
3,9 - 4,6 mm
10 mm
111.355.01

Applicator
The applicator leads the cable into the Microflow. It is available in different sizes according to the actual size of the fiber cable.

Applicator
Cable Ø
Order No.
A
1,0 – 1,7 mm
111.362.00
B
1,7 – 2,6 mm
111.363.00
C
2,7 – 3,8 mm
111.364.00
D
3,9 – 4,6 mm
111.365.00

Wheel
The Microflow is equipped with two wheels that pull the cable into the blow-in device. The wheels are available in different sizes, depending on the size of the cable.

Rad
Kabelgröße
Bestell Nr.
A
1,0 – 1,7 mm
111.366.00
B
1,8 – 2,6 mm
111.367.00
C
2,7 – 3,8 mm
111.368.00
D
3,90 – 4,5 mm
111.369.00

Fibre cable sensor arm set
The set consits of two pieces, which fit into each other and is the unique protection technology of our Microflow. It stops the cable blowing machine as soon as the cable gets bent inside the blowing junction block and the cable cannot get damaged. The set available in different sizes according to the actual size of the fibre cable.

Sensor Type
Cable Ø
Order No.
A
1,0 – 1,7 mm
111.380.02
B
1,8 - 2,6 mm
111.381.02

O-Ring for wheel
It is available indifferent sizes according to he size of the wheel/cable.

O-Ring
Cable Ø
Order No.
A
1,0 – 1,7 mm
111.385.00
B
1,7 - 2,6 mm
111.386.00
C + D
2,7 - 4,6 mm
111.387.00
Lubricant Bagela lube B50

For the use in micropipes

Order No. 111.340.00 240 ml
Order No. 111.340.60 470 ml

GLISS M 500 ml (Kopie)

For the use in micropipes
Order No. 111.340.70

Micropipe inner dia.
Amount in ml
Length in the pipe (1000 m)
4 mm
8
55-66 cm
8 mm
15
30 -35 cm
12 mm
22
20-22 cm
