Multiflow

Designed to blow in multiple micro ducts or single large size cables into ducts with a dia. of 32 up to 50 mm. It is suitable for air- and water blowing. The drive chains are propelled by two low-wear and low-noise hydraulic motors which enable for- and backward movement of the cable. Flex-Block included

Technical Data:
max. speed:  60 m/min
required air flow 10 m³/min
required air pressure: 12 bar
Control unit and Power Pack (125 bar / 15 l/min) essential!
Order No.  111.250.65
Flex Block (Blowing Junction Block) Order No. 111.282.10

Cable of dia. 8 - 27 mm can be injected into protective pipes of 32, 40 and 50 mm diameter.

Hydraulic Control Unit Order No. 111.420.00

With the control unit pressure and speed are regulated. The chains of the particular injection system are set in motion by the lever. The Power Pack is required for Bagela Powerflow, Multiflow und Miniflow.

Additional accessory

Cable guide "flex"
for single cable. It is to be inserted in the Blowing junction block.

Order No.
Cable diameter
111.235.10
8 - 12 mm
111.236.10
13 - 17 mm
111.237.10
18 - 22 mm
111.238.10
23 - 27 mm

Sealing for Micropipes, 7 pieces
The sealing is for the use of the blowing junction block with micro ducts. Many different combinations are possible regarding size and number of holes to micro ducts. Please specify when ordering.

Sealing for Micropipe
Order No.
1 bore
111.290.00
13 bores
111.291.00
15 bores
111.292.00
7 bores
111.294.00
for 10 mm sealing
111.294.10

Odometer  Order No. 111.240.00
The measuring system can be hinged onto the Powerflow or Multiflow as an additional unit. The length corresponding to the forward and backward movements  is indicated and saved. The data could be transferred to the EPD system. Measuring range 0- 9999 m

Nylon-Applicator for micro ducts  Order No. 111.285.01
This applicator assistance for micro ducts is fastened to the Multiflow and bundles the different pipes. The number off holes can vary. Please specify this when ordering (without frame).

Plug for micro ducts

The plug is equipped with a o-ring for 100% sealing. It is easy to mount with self cutting thread. It is available in other sizes. Please specify when ordering.

Micro duct Ø
Thickness
Order No.
7 mm
1,5 mm
111.296.00
10 mm
1 mm
111.297.00
10 mm
2 mm
111.297.04
12 mm
1 mm
111.298.00
14 mm
2 mm
111.298.10
16 mm
2 mm
111.298.20
20 mm
2,5 mm
111.298.32
Sealing unit with manometer

Laterally of the drum is the inner end of the duct where this unit is to be inserted and remain fixed during the injection procedure. A pressure loss will become visible at the manometer immediately.
Order No. 111.261.00

Overpressure testing unit
Guidance unit for micro ducts

The guidance unit is to be positioned between the micro duct drums and the Multiflow. It ensures a regular uncoiling of the ducts..
Order No. 111.262.00

Additional acceptance for micro duct drums

This acceptance fits in all trailers of the series BKT 18 up to BKT 27
Order No. 028.328.02

Micro Pipe Pulling Unit

Each strand has a tensile load of max. 300 kg.

Attention: Please follow the tensile load limit restrictions of the appropriate micro pipe.
The single strands are to be assembled, please make your choice.

Shekel for pulling unit needs to be ordered seperately
Order No. 107.070.00

Outer dia. mm
Thickness mm
Strand length mm
Order No
1 x 7
1,5
40
111.295.11
1 x 7
1,5
50
111.295.12
1 x 7
1,5
60
111.295.13
1 x 7
1,5
70
111.295.14
.
1 x 10
1
40
111.295.21
1 x 10
1
50
111.295.22
1 x 10
1
60
111.295.23
1 x 10
1
70
111.295.24
.
1 x 10
2
40
111.295.26
1 x 10
2
50
111.295.27
1 x 10
2
60
111.295.28
1 x 10
2
70
111.295.29
.
1 x 12
1
40
111.295.31
1 x 12
1
50
111.295.32
1 x 12
1
60
111.295.33
1 x 12
1
70
111.295.34
.
1 x 14
2
40
111.295.41
1 x 14
2
50
111.295.42
1 x 14
2
60
111.295.43
1 x 14
2
70
111.295.44
.
1 x 16
2
40
111.295.51
1 x 16
2
50
111.295.52
1 x 16
2
60
111.295.53
1 x 16
2
70
111.295.54
.
1 x 20
2,5
40
111.295.61
1 x 20
2,5
50
111.295.62
1 x 20
2,5
60
111.295.63
1 x 20
2,5
70
111.295.64
Minisonden for Calibration of micro pipes 33 kHz

Easy location of pipe damages
Range: 2-3 m
Scope of delivery: 1 Sonde, 2 Batteries, Storage Box

Minisonde Diameter: 6,4 mm

Order No.  009.675.61

Spare battery
Order No.  009.675.62

Nanosonde Diameter: 4,6 mm

Order No. 009.675.63

Cable Guiding Cap
Cable Ø
Order No.
 2,0 mm
111.342.01
 2,5 mm
111.342.02
 2,7 mm
111.342.15
 3,0 mm
111.342.14
 3,5 mm
111.342.16
 4,0 mm
111.342.03
 5,0 mm
111.342.04
 6,0 mm
111.342.05
 6,5 mm
111.342.06
 7,0 mm
111.342.07
 8,0 mm
111.342.08
 8,5 mm
111.342.09
 9,0 mm
111.342.10
10,0 mm
111.342.11
11,0 mm
111.342.12
12,0 mm
111.342.13
Spare Parts

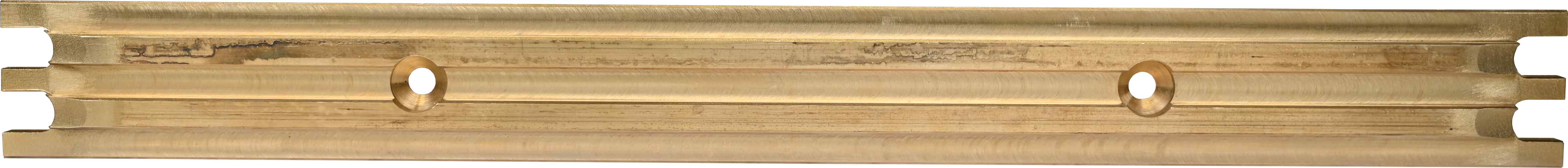

Chain rail Order No. 111.270.00
The chain rail, made from brass, supports the upper and lower drive chain. It is recommended to change the top / bottom rail at the same time.

Drive chain
The drive unit consists of two superimposed conveyor chains and is provided with special rubber profile. Depending on the number and diameter of the Micro ducts appropriate chains are available. The drive chains pull the cable from the drum into the blowing junction block wherefrom it is inserted into the tube by air or water pressure. It is recommended to change the two drive chains at the same time.

Chain for
Order No.
7 duct bunch dia. 10 mm
111.272.00
5/3 duct bunch dia. 10 mm
111.273.00
a single cable
111.269.00

Cable sealing ring
The sealing is to be inserted into the Cable guide (3 pieces per cable guide)

Order no.
Cable diameter
111.210.08
8 mm
111.210.09
9 mm
111.210.10
10 mm
...
...
111.210.27
27 mm

Cable guide roller, horizontal Order No. 111.224.00
The horizontal cable guide rollers lead and protect the fibre cable by the entry into the Multiflow.

Cable guide roller, vertical  Oder No. 111.225.00
The vertical cable guide rollers lead and protect the fibre cable by the entry into the Multiflow.
