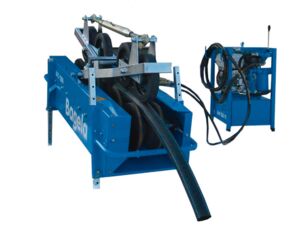

BKS 1200 Pipe and Cable Pusher

If one neither can set up a tubing trailer nor a pipe renewal winch from lack of space at the pit, the solution is called:
„BKS 1200 – Relining via Pipe Pushing“

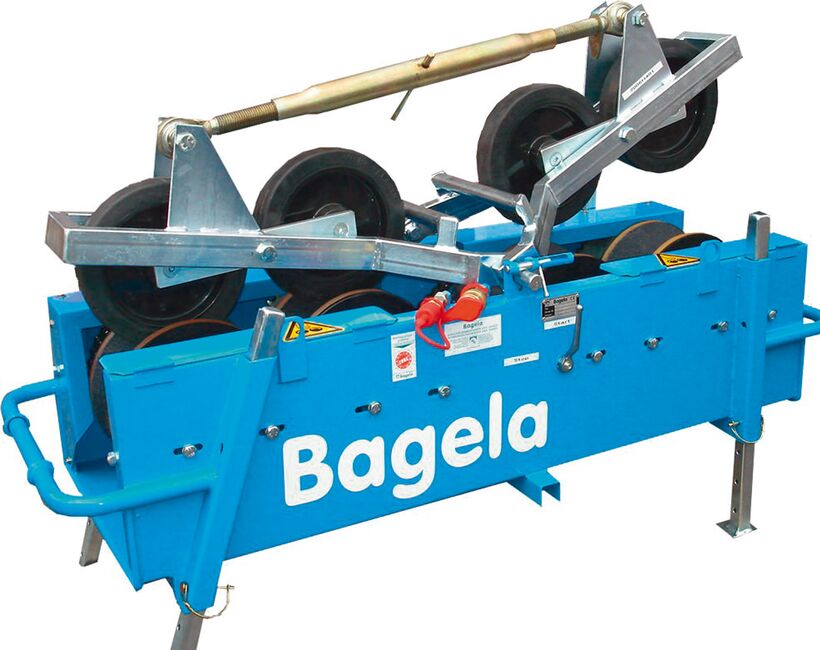

From, in the cable laying approved Cable pushers BKR 400 and BKS 800, we further developed a robust pipepushing device. The pushing strength was increased by the duplication of the number of the conical friction wheels and pressure wheels to 12 kN. The cable and pipe diameter, which can be pushed in, start with 50mm and end with 150mm.

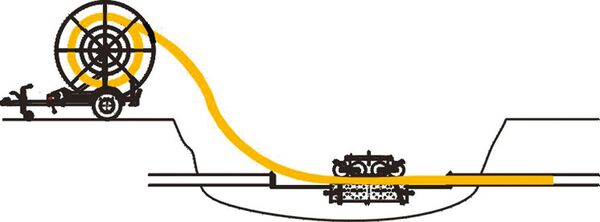

Is to be pushed only into one direction, it is sufficient to place the pipe pusher axially with downward gradient in front of the manhole and to fix it at the excavation wall.

Pictures

For cable and pipe diameter of 50-150mm:
If the old pipe or cable should be reconstructed on the whole line, the BKS 1200 is to be fixed between the two endings of the pipe in the manhole, so that one can push a 100 m in both directions.

Due to the population decrease, the increased environmental awareness and smaller losses in the future it showed up that smaller diameters have to be laid; which can be pushed in easily.

Accessories

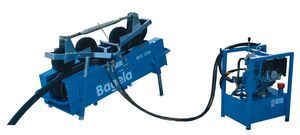

BHA 200/10

Hydraulic power pack with petrol engine

Order No.. 010.120.01

Hydraulic hoses
with speed adjustment, 5 m

Order No. 003.558.04

Technical Data

Technical Data:
Type
Push power kN
Rate m/min
Drive engine
Length mm
Width mm
Height mm
Weight kg
Order No.
BKS 1200 H
12
0-10
-
1300
450
650
210
012.150.00
BHA 200/10 Hydr. power pack
-
-
Petrol, 4kW
990
485
520
84
010.120.01
Hydraulic hoses
with speed adjustment
.
.
5 m + 1,25 m
-
-
10,2
003.558.04
Hydraulic hoses
without regulation
.
.
10 m
-
-
10,8
003.558.02

Type H: Hydraulically driven by external hydraulic power pack
Specifications are subjects to change without notice
