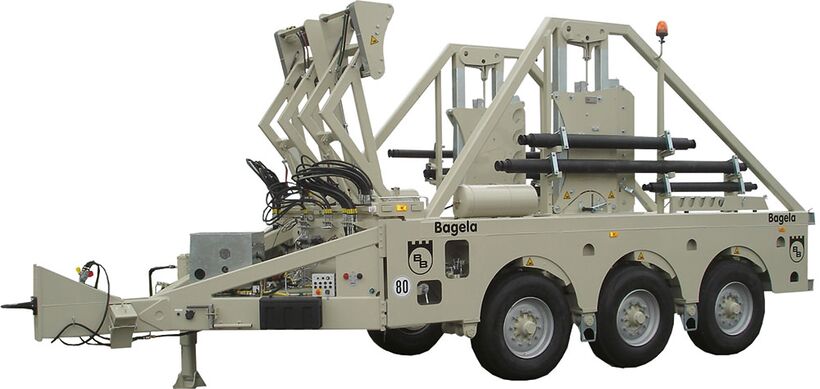

BTT 300 hydraulically widenable
Cable trailers of this construction series are capable of picking up, transporting and unreeling heavy power cable drums from 2200 up to 4500 mm diameter and 30t weight. For drums of dia. 2200 – 3270mm are additional lifting pockets available. For larger drum diameters this type of trailer offers a solution too.
The rear open U-type design of the trailer, allows the cable drum to be placed directly into loading position, where it is only lifted up for transport or payout by two vertical rows of lifting pockets driven by a power-hydraulic system.
This trailer gets loaded by the motor hydraulic lift. The air suspension enables the laterally lowering of the trailer to adapt to angular standing drums on difficult ground. This suspension assures the permanent load spreading on all tires while driving.
Optional accessories:
• twin roller drum drive with hydraulic press cylinders
• additional pockets for picking up small cable drums
• hydraulic extendable system
• remote control
Standard version
In standard version the BTT 300.10E is flanged and the speed limited to 10 km/h. For shipment the trailer can be separated in 3 parts.
Remote Control
The remote control with 10 m cable ensures an optimal overview to the operator while loading, reeling and unreeling (fast- slow)
For hydraulic extendable versions on request.
Extendable version
For driving on public roads or for shipment the trailer is retractable to an outer width of 2550 mm. Admitted speed 80 km/h (depending on national road restrictions).
Specifications are subjects to change without notice
