BRT 20

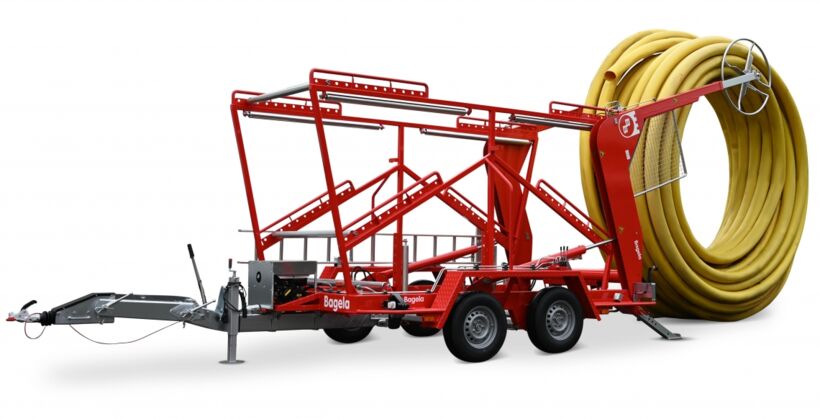

The BRT 20 is able to pick up, load, and uncoil pipe coils without any help. Even laying coils can be picked up without any auxiliary equipment. Tube coils of varying diameters may be picked up with the aid of vertical hydraulic jacks and put down on the bearing rollers. Then three guiding rollers are inserted on the inside of the coil and the coil is ready for unreeling.

Tube coils of varying diameters may be picked up with the aid of the vertical hydraulic jacks and put down on the bearing rollers. Then three guiding rollers are inserted on the inside of the coil, and the coil is ready for unreeling.

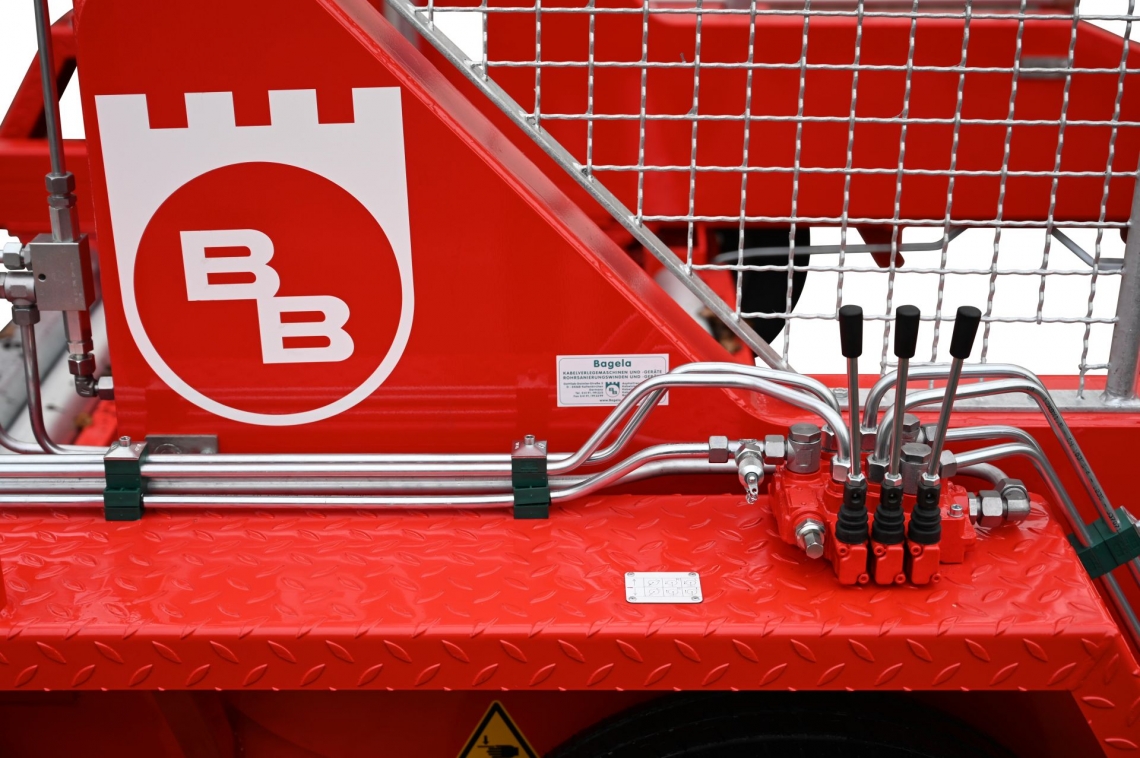

Since the coils are picked up from the rear, all hydraulic controls levers are arranged at the rear. The operator’s stand within the slewing range of the pick-up frame is provided with a protection guard.

Even coils lying flat on the ground can be picked up by the frame and slewed into the roller cage.

The pick-up shaft runs on bearings and is provided with spherical ends, which prevent the shaft from being stressed irrespective of the relative position of the lifting arms.

During tube unreeling two steadying wheels hold the narrow coils (100 m length) in centre position.

Attention: The inner end of the pipe has to be cut flush to the pipe coil!

Specifications are subjects to change without notice
