Measurement, control and recording devices

Automatic pull hold-on (static pull) system with pulling force preselector and measuring dial

As soon as the actual pulling force reaches the preselected level, the pump will divert the hydraulic flow automatically to the overflow path and will thus keep a static pull on the line.

Order No. 000.002.90

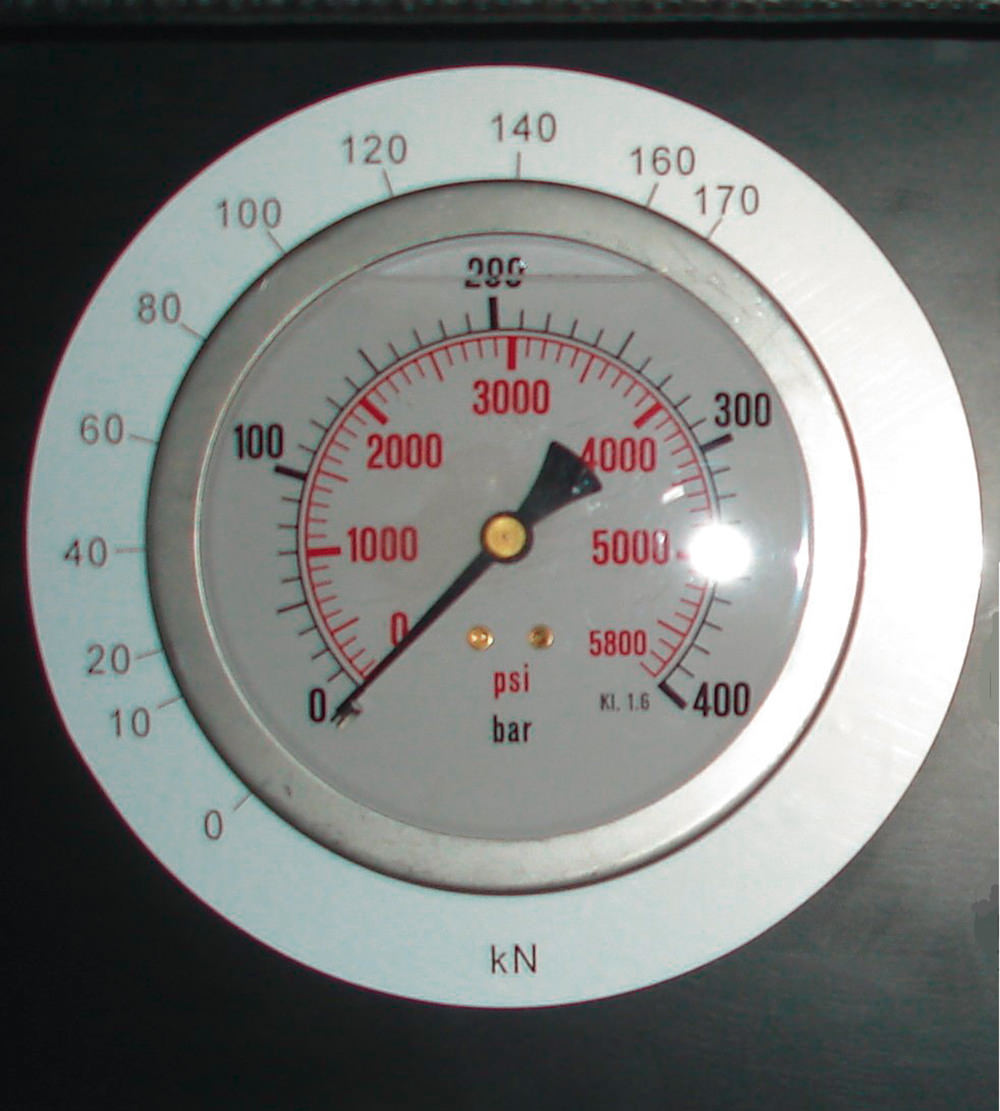

Measuring dial with preselectable limiting switch

As soon as the preselected pulling force is reached, the pull will be interrupted.

Order No. 104.500.92

PC 410 pulling force control and logging device

A robust and closed for the rental park suitable pulling force control and recording device.

The PC 410 is characterised by a very simple operation, based on symbols on the touch screen. The data transfer is possible via WiFi and USB-port.

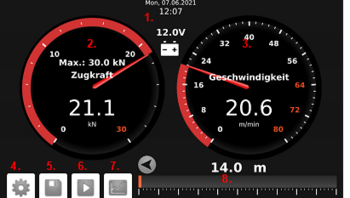

PC 410 Pulling Force Control and recording device

1. Time, date and actual battery voltage
2. Pulling force
3. Pulling speed
4. Service level
5. Protocol summary
6. Start logging
7. Switch to diagram view
8. Pulled length

Order No. 007.958.00
