RW 10 - RW 20 -RW 40 - RW 100
The winch is powered by a diesel engine and is equipped with a steplessly controlled hydrostatic gear. Every Bagela Pipe Renewal Winch is outfitted with automatic hold-on system. The required line pull can be pre-selected by control of the hydraulic oil pump (pressure/flow control) which keeps the winching rope in permanent tension even at varying pull resistance. This system ensures full self-control of the winch and is more effective than manual control of line speed. The line pull may be increased until the hydraulic overflow valves are activated.
The winch itself is consisting of a twin capstan drive and rope storage drum with automatic rope stacking device. A rope protecting, grooved double capstan system generates the whole pulling force.
For operation the sheet steel mades and soundproofed housing remains closed, only the cover of the operation panel has to be opened.
The winch is to be retained by two telescopic and pretensionable rear props and a deflection boom against an end trestle.
|Serial outfit:||Optional outfit:|
|Hydr. Pulling force indicator||Remote control|

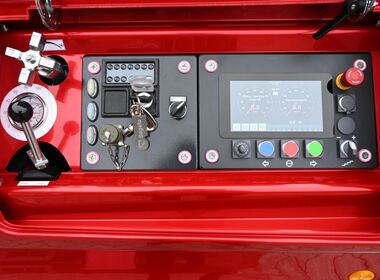

|Gear speed shifter||PC 410, touch screen indicating:|
|Pulling force pre-selection||•Pre-selected pulling force|
|Rope speed||•Actual pulling force|
|Rope: In/Stop/Out||•Length (progress bar)|
|Elepsed hour counter||WiFi, USB port|
Extras: (on request)
Other type of engines, chassis, paintings and more rope if needed, telescopic deflection boom
Dimensions and weights may differ if extras are fitted.

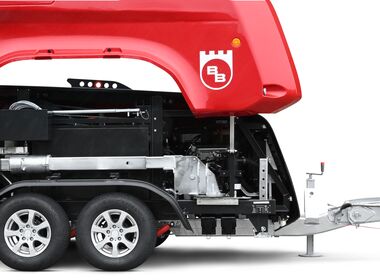

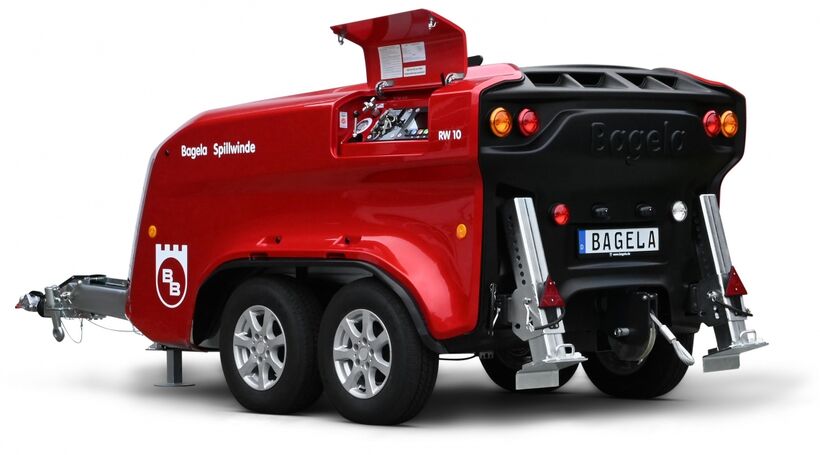

RW 10 and smaller winches with longer rope now in the new Terpolmer (ABS) housing:
• Interior free accessible
• Higher rope output speed up to 100 m/min possible
• Higher rope length possible
• Deflection boom optional, stored in swing out holder underneath the housing
• counter-sunk front supports

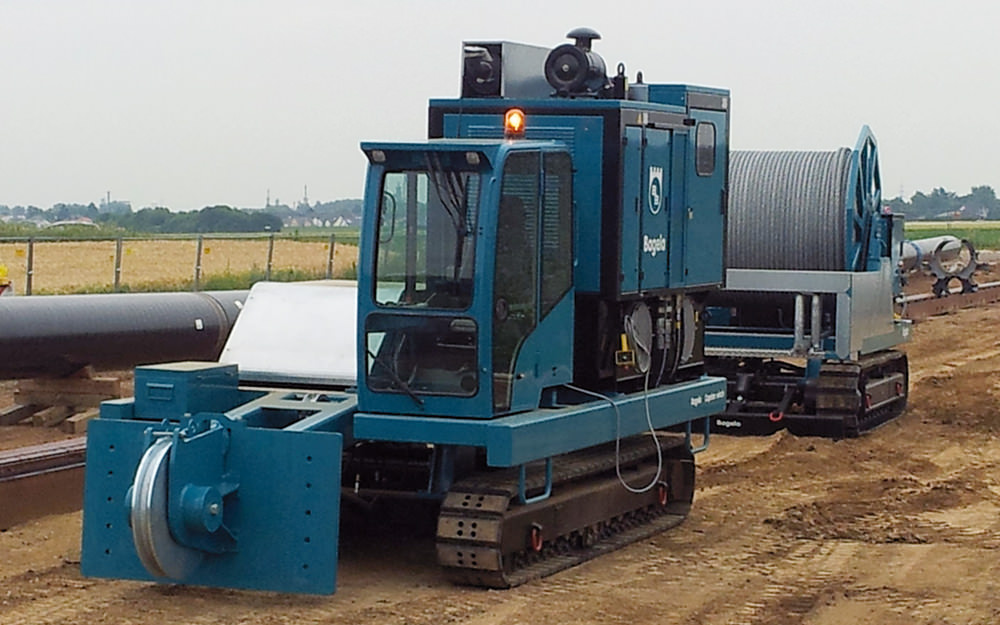

RW 1000 crossing below the river Rhein

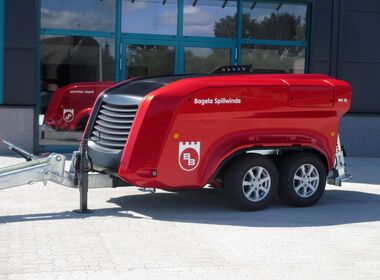

Photos Plastic Housing

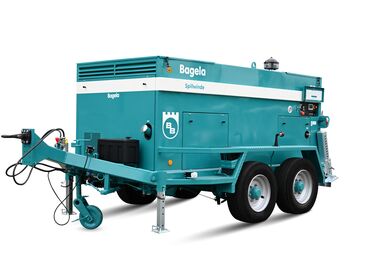

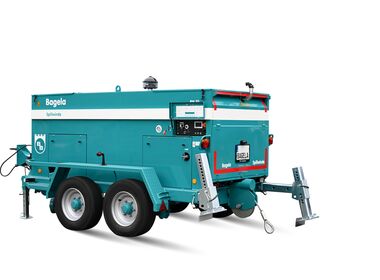

Photos Steel Sheet housing
Specifications are subjects to change without notice
