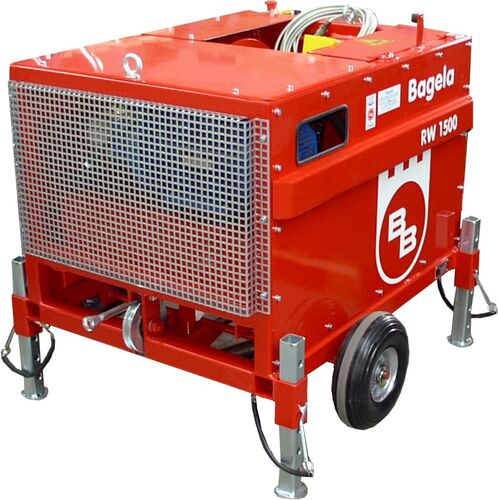

RW 1500

The winch Type RW 1500 is ideal for pulling inline hoses into sewers. Owing to its compactness it may be used as part of the outfit of most types of workshop vans. It can easily be moved over sewer pits on its castor wheels.
For vertical pulling over sewer pits, the four props are drawn out and fixed. A gasoline engine drives the hydraulic gear and a hand wheel between 0 and max controls the pulling speed. 5 m/min. The rope is automatically stacked onto the drum. For payout, the drum is disengaged from its drive. Upon request the winch will be delivered with electric motor for use in closed rooms.
The winch will be delivered with 200 m of steel rope of 8 mm diameter for a maximum pulling force of 15 kN. Upon request a rope of max. 250 m will be furnished.

Order No.: 007.700.06

Specifications are subjects to change without notice
